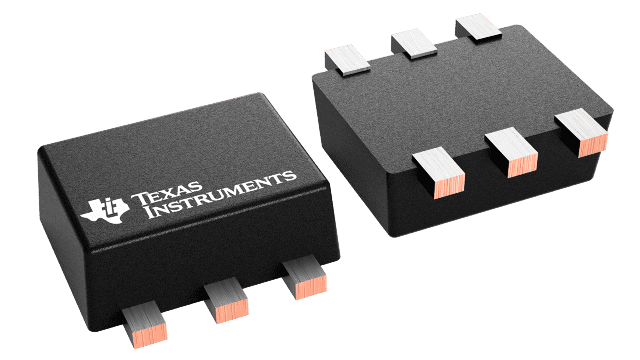

SN74LVC1T45DRLR Texas Instruments - Yeehing Electronics

Single-Bit Dual-Supply Bus Transceiver with Configurable Voltage-Level Shifting and 3-State Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	0.356
100 — 249	0.242
250 — 999	0.187
1,000 +	0.09

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Translation - Voltage Levels
RoHS	Y
Propagation Delay Time	17.7 ns
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.65 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	SOT-5X3-6
Packaging	Reel
Features	Partial power down (Ioff), Over-voltage tolerant inputs, Vcc isolation
Input Type	CMOS, TTL
Operating Temperature Range	- 40 C to + 85 C
Output Type	3-State
Series	SN74LVC1T45
Brand	Texas Instruments
Logic Family	LVC
Logic Type	True
High Level Output Current	- 32 mA
Low Level Output Current	32 mA
Product Type	Translation - Voltage Levels
Factory Pack Quantity	4000
Subcategory	Logic ICs
Unit Weight	0.000099 oz

For more information, please refer to datasheet

Documents

SN74LVC1T45DRLR Datasheet

More Information

This single-bit noninverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 5.5 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
