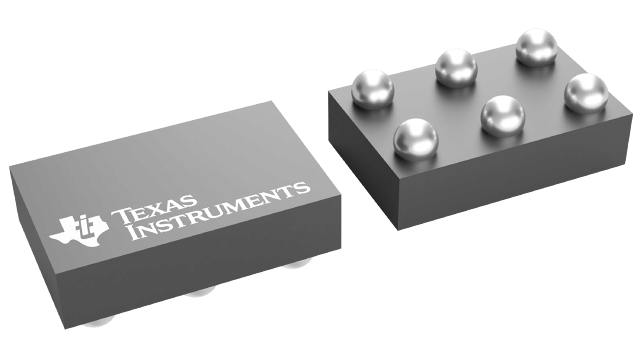

SN74LVC2G07YZPR Texas Instruments - Yeehing Electronics
2-ch, 1.65-V to 5.5-V buffers with open-drain outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.631 |
100 — 249 | 1.347 |
250 — 999 | 0.968 |
1,000 + | 0.51 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
SN74LVC2G07YZPR Datasheet |
More Information
This dual buffer and driver is designed for 1.65-V to 5.5-V VCC operation. The output of the SN74LVC2G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32 mA.
