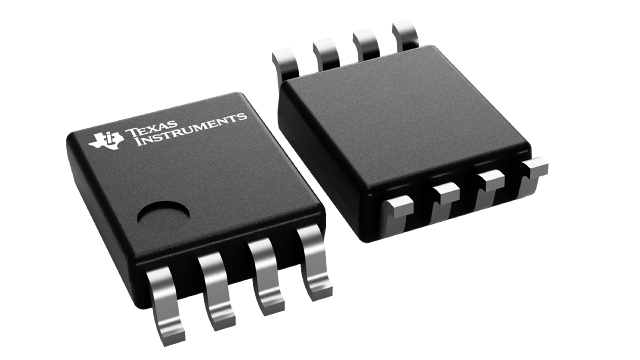

SN74LVC2G08MDCUREP Texas Instruments - Yeehing Electronics
Enhanced product 2-ch, 2-input, 1.65-V to 5.5-V AND gates
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.77 |
| 100 — 249 | 1.462 |
| 250 — 999 | 1.05 |
| 1,000 + | 0.63 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Logic Gates |
| RoHS | Y |
| Product | Single-Function Gate |
| Logic Function | AND |
| Logic Family | LVC |
| Number of Gates | 2 Gate |
| Number of Input Lines | 2 Input |
| Number of Output Lines | 1 Output |
| High Level Output Current | - 24 mA |
| Low Level Output Current | 24 mA |
| Propagation Delay Time | 5.7 ns |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.65 V |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | VSSOP-8 |
| Packaging | Reel |
| Function | AND |
| Height | 0.85 mm |
| Input Type | CMOS, TTL |
| Length | 2.3 mm |
| Operating Temperature Range | - 55 C to + 125 C |
| Series | SN74LVC2G08-EP |
| Width | 2 mm |
| Brand | Texas Instruments |
| Logic Type | True |
| Operating Supply Voltage | 1.65 V to 5.5 V |
| Product Type | Logic Gates |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Part # Aliases | V62/07631-01XE |
| Unit Weight | 0.000339 oz |
For more information, please refer to datasheet
Documents
| SN74LVC2G08MDCUREP Datasheet |
More Information
This dual 2-input positive-AND gate is designed for 1.65-V to 5.5-V VCC operation.
