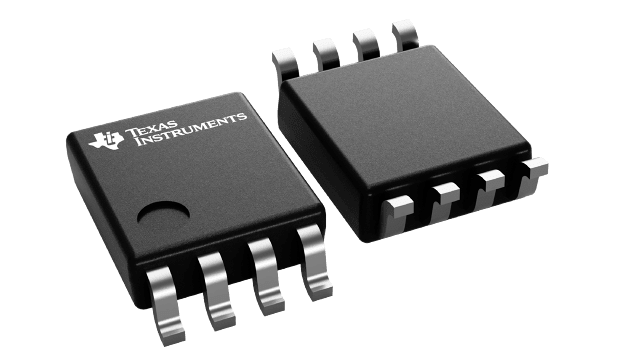

SN74LVC2G32DCURG4 Texas Instruments - Yeehing Electronics

2-ch, 2-input, 1.65-V to 5.5-V OR gates

Pricing (USD)

Quantity	Unit Price
1 — 99	0.506
100 — 249	0.39
250 — 999	0.287
1,000 +	0.14

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Logic Gates
RoHS	Y
Product	Single-Function Gate
Logic Function	OR
Logic Family	74LVC
Number of Gates	2 Gate
Number of Input Lines	2 Input
Number of Output Lines	1 Output
High Level Output Current	- 32 mA
Low Level Output Current	32 mA
Propagation Delay Time	3.8 ns
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.65 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	VSSOP-8
Packaging	Reel
Function	OR
Height	0.85 mm
Input Type	CMOS, TTL
Length	2.3 mm
Operating Temperature Range	- 40 C to + 125 C
Series	SN74LVC2G32
Width	2 mm
Brand	Texas Instruments
Logic Type	True
Operating Supply Voltage	1.8 V, 2.5 V, 3.3 V, 5 V
Product Type	Logic Gates
Factory Pack Quantity	3000
Subcategory	Logic ICs
Unit Weight	0.000339 oz

For more information, please refer to datasheet

Documents

SN74LVC2G32DCURG4 Datasheet

More Information

This dual 2-input positive-OR gate is designed for 1.65-V to 5.5-V VCC operation.
