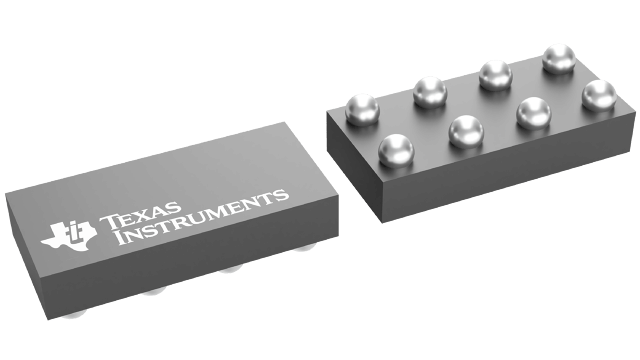

SN74LVC2G86YZPR Texas Instruments - Yeehing Electronics
2-ch, 2-input, 1.65-V to 5.5-V XOR (exclusive OR) gates
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.588 |
| 100 — 249 | 0.452 |
| 250 — 999 | 0.333 |
| 1,000 + | 0.12 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Logic Gates |
| RoHS | Y |
| Product | Single-Function Gate |
| Logic Function | XOR |
| Logic Family | 74LVC |
| Number of Gates | 2 Gate |
| Number of Input Lines | 2 Input |
| Number of Output Lines | 1 Output |
| High Level Output Current | - 32 mA |
| Low Level Output Current | 32 mA |
| Propagation Delay Time | 4.7 ns |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-8 |
| Packaging | Reel |
| Function | XOR |
| Height | 0.3 mm |
| Input Type | CMOS, TTL |
| Length | 1.9 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | SN74LVC2G86 |
| Width | 0.9 mm |
| Brand | Texas Instruments |
| Logic Type | True |
| Operating Supply Voltage | 1.8 V, 2.5 V, 3.3 V, 5 V |
| Product Type | Logic Gates |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000081 oz |
For more information, please refer to datasheet
Documents
| SN74LVC2G86YZPR Datasheet |
More Information
This dual 2-input exclusive-OR gate is designed for 1.65-V to 5.5-V VCC operation.
