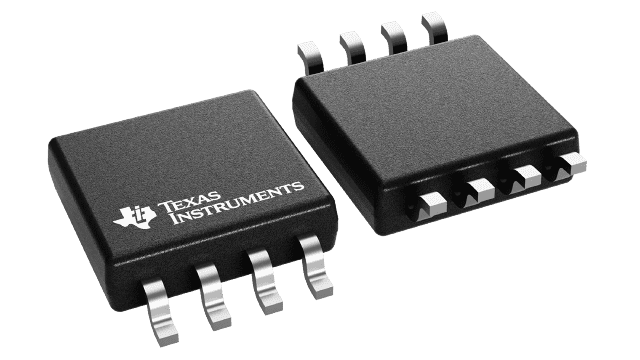

SN74LVC2T45MDCTTEP Texas Instruments - Yeehing Electronics
Enhanced Product Dual-Bit Dual Supply Transceiver w/ Configurable Voltage Transl., 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.182 |
| 100 — 249 | 1.912 |
| 250 — 999 | 1.34 |
| 1,000 + | 0.51 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Propagation Delay Time | 28.3 ns |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 1.65 V |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | SM-8 |
| Packaging | Reel |
| Features | Partial power down (Ioff), Over-voltage tolerant inputs, Output enable |
| Operating Temperature Range | - 55 C to + 125 C |
| Output Type | 3-State |
| Series | SN74LVC2T45-EP |
| Brand | Texas Instruments |
| Logic Family | LVC |
| Logic Type | True |
| High Level Output Current | - 32 mA |
| Low Level Output Current | 32 mA |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 250 |
| Subcategory | Logic ICs |
| Part # Aliases | V62/09604-01XE |
| Unit Weight | 0.000825 oz |
For more information, please refer to datasheet
Documents
More Information
This dual-bit noninverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 5.5 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
