Description

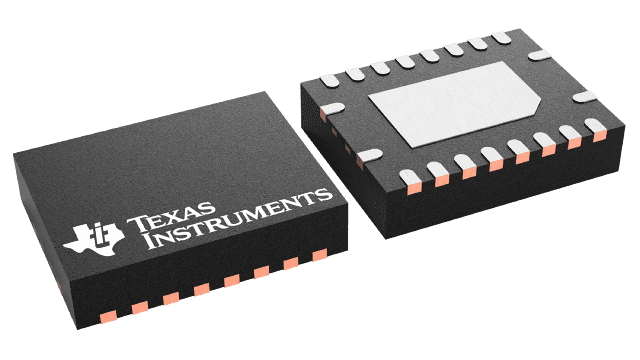

SN74LVC373ARGYR Texas Instruments - Yeehing Electronics
Octal Transparent D-Type Latch With 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.387 |
| 100 — 249 | 0.263 |
| 250 — 999 | 0.203 |
| 1,000 + | 0.09 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Latches |
| RoHS | Y |
| Number of Circuits | 8 Circuit |
| Logic Type | True |
| Logic Family | 74LVC |
| Polarity | Non-Inverting |
| Quiescent Current | 10 uA |
| Number of Output Lines | 1 Line |
| High Level Output Current | - 24 mA |
| Low Level Output Current | 32 mA |
| Propagation Delay Time | 7.8 ns at 2.7 V, 6.8 ns at 3.3 V |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Package / Case | VQFN-20 |
| Packaging | Reel |
| Function | Octal Transparent D-Type Latch with 3-State Outputs |
| Height | 0.8 mm |
| Length | 4.5 mm |
| Output Type | 3-State |
| Series | SN74LVC373A |
| Type | D-Type |
| Width | 3.5 mm |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Number of Channels | 8 Channel |
| Number of Input Lines | 2 Line |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.65 V to 3.6 V |
| Product Type | Latches |
| Reset Type | No Reset |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001517 oz |
For more information, please refer to datasheet
Documents
| SN74LVC373ARGYR Datasheet |
More Information
The SN54LVC373A octal transparent D-type latch is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC373A octal transparent D-type latch is designed for 1.65-V to 3.6-V VCC operation.
