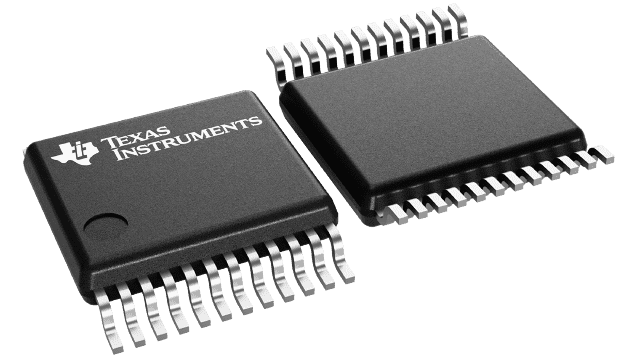

SN74LVC8T245DGVR Texas Instruments - Yeehing Electronics
8-Bit Dual-Supply Bus Transceiver with Configurable Voltage-Level Shifting and Three-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.18 |
| 100 — 249 | 1.91 |
| 250 — 999 | 1.58 |
| 1,000 + | 1.37 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SN74LVC8T245DGVR Datasheet |
More Information
This 8-bit noninverting bus transceiver uses two separate configurable power-supply rails. The SN74LVC8T245 is optimized to operate with VCCA and VCCB set at 1.65 V to 5.5 V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 5.5 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5.5-V voltage nodes.
