Texas Instruments
SN74LVCC4245ANSR
SN74LVCC4245ANSR
Regular price
$0.45 USD
Regular price
Sale price
$0.45 USD
Unit price
per
Couldn't load pickup availability

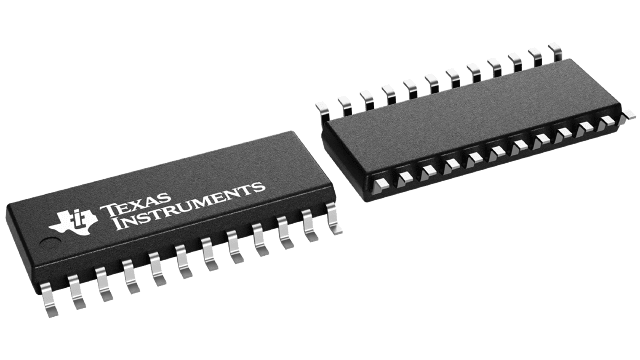

SN74LVCC4245ANSR Texas Instruments - Yeehing Electronics
Octal Bus Transceiver With Adjustable Output Voltage and 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.571 |
| 100 — 249 | 1.208 |
| 250 — 999 | 0.89 |
| 1,000 + | 0.45 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Propagation Delay Time | 2.7 ns |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.7 V, 4.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOP-24 |
| Packaging | Reel |
| Data Rate | 200 Mb/s |
| Features | Output enable |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Type | 3-State |
| Series | SN74LVCC4245A |
| Brand | Texas Instruments |
| Logic Family | 74LV |
| Logic Type | CMOS |
| High Level Output Current | 24 mA |
| Low Level Output Current | 24 mA |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.010857 oz |
For more information, please refer to datasheet
Documents
| SN74LVCC4245ANSR Datasheet |
More Information
This 8-bit (octal) noninverting bus transceiver uses two separate power-supply rails. The A port, VCCA, is dedicated to accept a 5-V supply level, and the configurable B port, which is designed to track VCCB, accepts voltages from 3 V to 5 V. This allows for translation from a 3.3-V to a 5-V environment and vice versa.
