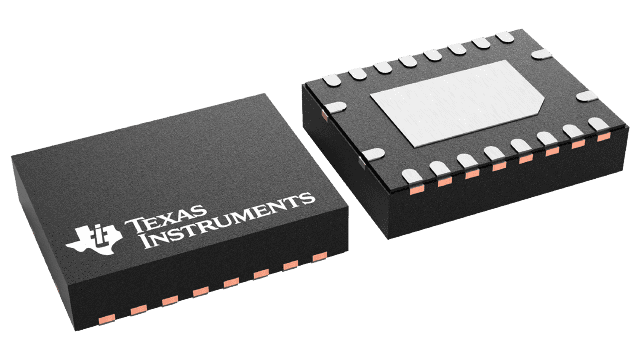

SN74LVT244BRGYR


YeeHing #: Y009-SN74LVT244BRGYR
Inventory: 5800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

SN74LVT244BRGYR Texas Instruments - Yeehing Electronics

8-ch, 2.7-V to 3.6-V buffers with TTL-compatible CMOS inputs and 3-state outputs

Pricing (USD)

Quantity Unit Price
1 — 99 0.679
100 — 249 0.523
250 — 999 0.385
1,000 + 0.22

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Buffers & Line Drivers
RoHS Y
Number of Input Lines 8 Input
Number of Output Lines 3 Output
Polarity Non-Inverting
Supply Voltage - Max 3.6 V
Supply Voltage - Min 2.7 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case VQFN-20
Packaging Reel
Function Buffer/Line Driver
Height 0.8 mm
Length 4.5 mm
Operating Temperature Range - 40 C to + 85 C
Output Type 3-State
Quiescent Current 5 mA
Series SN74LVT244B
Technology BiCMOS
Width 3.5 mm
Brand Texas Instruments
Logic Family LVT
Logic Type Octal Buffer and Driver
Number of Channels 8
Supply Current - Max 5000 uA
High Level Output Current - 32 mA
Input Signal Type Single-Ended
Low Level Output Current 64 mA
Moisture Sensitive Yes
Operating Supply Current 5 uA
Operating Supply Voltage 3.3 V
Product Type Buffers & Line Drivers
Propagation Delay Time 2.3 ns at 3.3 V
Factory Pack Quantity 3000
Subcategory Logic ICs
Unit Weight 0.001517 oz

For more information, please refer to datasheet

Documents

SN74LVT244BRGYR Datasheet

More Information

This octal buffer and line driver is designed specifically for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.
