Texas Instruments

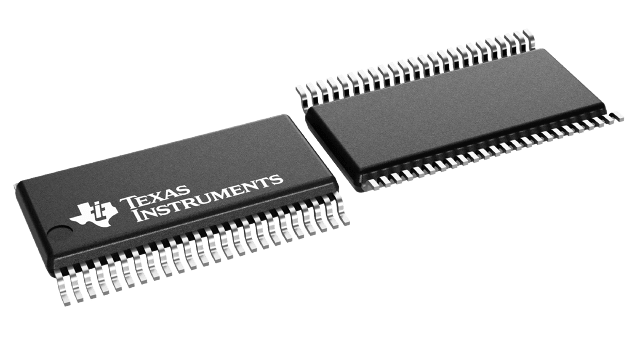

SN74LVTH16244ADGVR
SN74LVTH16244ADGVR
Regular price
$0.35 USD
Regular price
Sale price
$0.35 USD
Unit price
per
Couldn't load pickup availability
SN74LVTH16244ADGVR Texas Instruments - Yeehing Electronics
16-ch, 2.7-V to 3.6-V buffers with TTL-compatible CMOS inputs and 3-state outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.24 |
| 100 — 249 | 0.954 |
| 250 — 999 | 0.702 |
| 1,000 + | 0.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 2,000 |
| Package | Pins | TVSOP (DGV) | 48 |
For more information, please refer to datasheet
Documents
| SN74LVTH16244ADGVR Datasheet |
More Information
The 'LVTH16244A devices are 16-bit buffers and line drivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. These devices provide true outputs and symmetrical active-low output-enable (OE) inputs.
