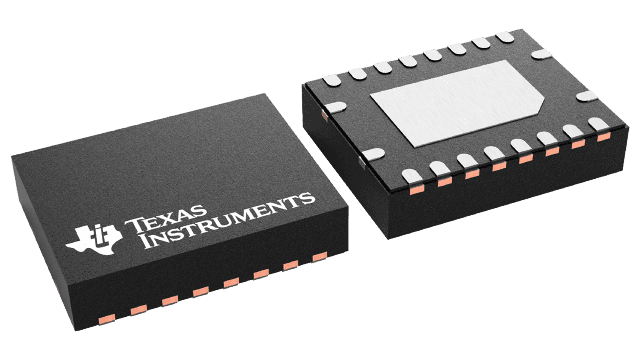

SN74LVTH574RGYR Texas Instruments - Yeehing Electronics

3.3-V ABT Octal Edge-Triggered D-Type Flip-Flops With 3-State Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	0.684
100 — 249	0.526
250 — 999	0.388
1,000 +	0.22

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Flip Flops
RoHS	Y
Number of Circuits	8
Logic Family	LVT
Logic Type	D-Type Flip-Flop
Polarity	Non-Inverting
Input Type	TTL
Output Type	3-State
Propagation Delay Time	3 ns
High Level Output Current	- 32 mA
Low Level Output Current	64 mA
Supply Voltage - Min	2.7 V
Supply Voltage - Max	3.6 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	VQFN-20
Packaging	Reel
Function	Tri-State ABT Octal
Height	0.8 mm
Length	4.5 mm
Operating Temperature Range	- 40 C to + 85 C
Series	SN74LVTH574
Width	3.5 mm
Brand	Texas Instruments
Number of Input Lines	1
Number of Output Lines	3
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Product Type	Flip Flops
Factory Pack Quantity	3000
Subcategory	Logic ICs
Unit Weight	0.001517 oz

For more information, please refer to datasheet

Documents

SN74LVTH574RGYR Datasheet

More Information

These octal flip-flops are designed specifically for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.
