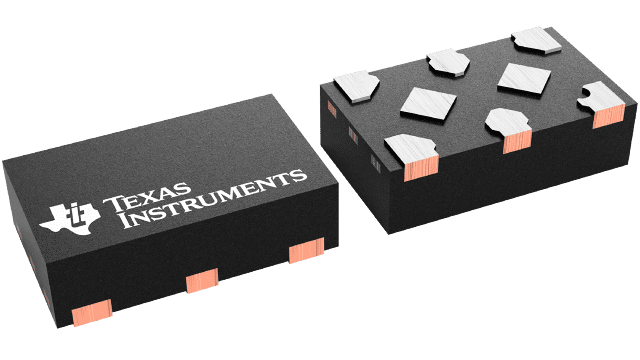

SN74LXC2T45DTMR Texas Instruments - Yeehing Electronics

2-bit dual supply transceiver with configurable voltage-level shifting and tri-state outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	0.65
100 — 249	0.5
250 — 999	0.368
1,000 +	0.18

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SN74LXC2T45DTMR Datasheet

More Information

The SN74LXC2T45 is a dual-bit, dual-supply noninverting bidirectional voltage level translation device. Ax pins and control pin (DIR) are referenced to VCCA logic levels, and Bx pins are referenced to VCCB logic levels. The A port is able to accept I/O voltages ranging from 1.1 V to 5.5 V, while the B port can accept I/O voltages from 1.1 V to 5.5 V. A high on DIR allows data transmission from A to B and a low on DIR allows data transmission from B to A. See Device Functional Modes for a summary of the operation of the control logic.
