Texas Instruments
SN74SSTVF16859G4R
SN74SSTVF16859G4R
Regular price
$2.23 USD
Regular price
Sale price
$2.23 USD
Unit price
per
Couldn't load pickup availability

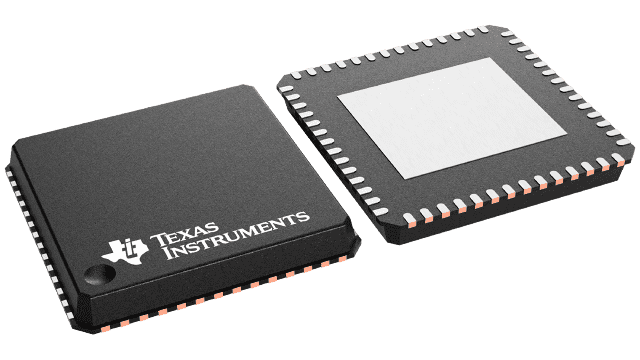

SN74SSTVF16859G4R Texas Instruments - Yeehing Electronics
500-MHz, 13-bit to 26-bit registered buffer with SSTL_2 inputs and outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.86 |
| 100 — 249 | 4.778 |
| 250 — 999 | 3.755 |
| 1,000 + | 2.23 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Registers |
| RoHS | Y |
| Logic Type | CMOS |
| Logic Family | SSTV |
| Propagation Delay Time | 2.5 ns, 2.2 ns |
| High Level Output Current | - 16 mA |
| Low Level Output Current | 16 mA |
| Supply Voltage - Max | 2.7 V |
| Supply Voltage - Min | 2.3 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Package / Case | VQFNP-56 |
| Packaging | Reel |
| Series | SN74SSTVF16859 |
| Brand | Texas Instruments |
| Mounting Style | SMD/SMT |
| Number of Input Lines | 13 Input |
| Number of Output Lines | 26 Output |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.5 V |
| Polarity | Non-Inverting |
| Product Type | Registers |
| Factory Pack Quantity | 2000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.006124 oz |
For more information, please refer to datasheet
Documents
| SN74SSTVF16859G4R Datasheet |
More Information
This 13-bit to 26-bit registered buffer is designed for 2.3-V to 2.7-V VCC operation.
