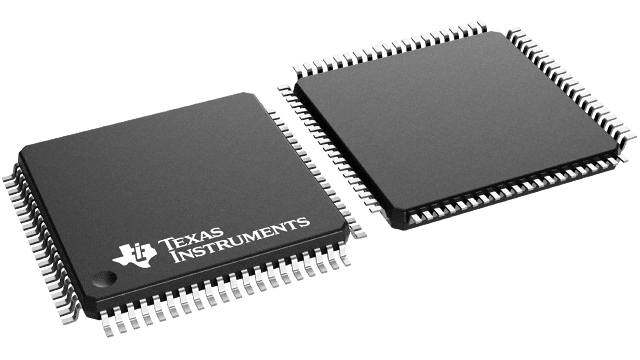

SN74V283PZAEP Texas Instruments - Yeehing Electronics

Enhanced Product 32768 X 18 Synchronous Fifo Memory

Pricing (USD)

Quantity	Unit Price
1 — 99	61.182
100 — 249	54.384
250 — 999	44.707
1,000 +	27.99

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	FIFO
RoHS	Y
Data Bus Width	9 bit, 18 bit
Bus Direction	Unidirectional
Memory Size	576 kbit
Timing Type	Synchronous
Organization	64 k x 9, 32 k x 18
Number of Circuits	2
Maximum Clock Frequency	133 MHz
Access Time	5 ns
Supply Voltage - Max	3.45 V
Supply Voltage - Min	3.15 V
Supply Current - Max	35 mA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Package / Case	LQFP-80
Packaging	Tray
Height	1.4 mm
Series	SN74V283-EP
Width	14 mm
Brand	Texas Instruments
Mounting Style	SMD/SMT
Moisture Sensitive	Yes
Operating Supply Voltage	3.3 V
Product Type	FIFO
Factory Pack Quantity	90
Subcategory	Memory & Data Storage
Part # Aliases	V62/03639-03XE
Unit Weight	0.022575 oz

For more information, please refer to datasheet

Documents

SN74V283PZAEP Datasheet

More Information

The SN74V263, SN74V273, SN74V283, and SN74V293 are exceptionally deep, high-speed, CMOS first-in first-out (FIFO) memories with clocked read and write controls and a flexible bus-matching ×9/×18 data flow.
