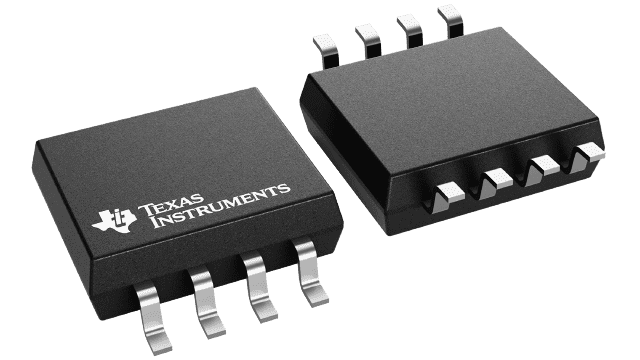

SN751701PSR Texas Instruments - Yeehing Electronics

Line Driver and Receiver

Pricing (USD)

Quantity	Unit Price
1 — 99	1.044
100 — 249	0.862
250 — 999	0.619
1,000 +	0.33

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	RS-232 Interface IC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	SO-8
Series	SN751701
Function	Transceiver
Data Rate	300 kb/s
Number of Drivers	1 Driver
Number of Receivers	1 Receiver
Duplex	Half Duplex
Supply Voltage - Max	15 V
Supply Voltage - Min	4.5 V
Operating Supply Current	6.1 mA
Minimum Operating Temperature	- 20 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Height	1.95 mm
Length	6.2 mm
Product	RS-232 Transceivers
Supply Type	Dual Supply
Width	5.3 mm
Brand	Texas Instruments
Shutdown	Without Shutdown
Operating Supply Voltage	5 V, 9 V, 12 V
Product Type	RS-232 Interface IC
Propagation Delay Time	0.24 us, 0.48 us
Factory Pack Quantity	2000
Subcategory	Interface ICs
Unit Weight	0.004325 oz

For more information, please refer to datasheet

Documents

SN751701PSR Datasheet

More Information

The SN751701 line driver and receiver is designed to satisfy the requirements of the standard interface between data terminal equipment and data communication equipment as defined by ANSI TIA/EIA-232-E. The driver used is similar to the SN75188. The receiver used is similar to the SN75189A. The device operates over a wide range of supply voltages (VCC = ±4.5 V to ±15 V) from the included reference regulator.
