Texas Instruments

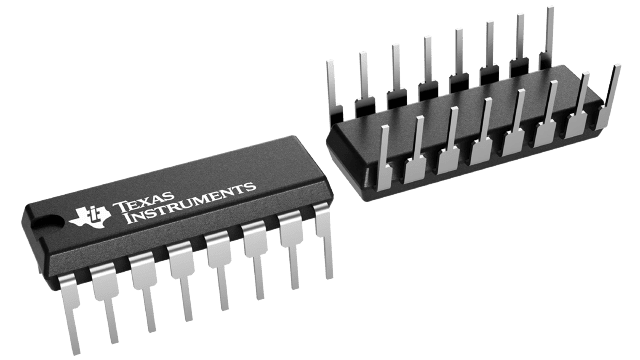

SN75437ANE
SN75437ANE
Regular price
$0.71 USD
Regular price
Sale price
$0.71 USD
Unit price
per
Couldn't load pickup availability
SN75437ANE Texas Instruments - Yeehing Electronics
Quadruple peripheral drivers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.267 |
| 100 — 249 | 1.872 |
| 250 — 999 | 1.345 |
| 1,000 + | 0.71 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Buffers & Line Drivers |
| RoHS | Y |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | Through Hole |
| Package / Case | PDIP-16 |
| Packaging | Tube |
| Operating Temperature Range | 0 C to + 70 C |
| Series | SN75437A |
| Brand | Texas Instruments |
| Input Signal Type | CMOS, TTL |
| Product Type | Buffers & Line Drivers |
| Propagation Delay Time | 1950 ns |
| Factory Pack Quantity | 25 |
| Subcategory | Logic ICs |
| Unit Weight | 0.033570 oz |
For more information, please refer to datasheet
Documents
| SN75437ANE Datasheet |
More Information
The SN75437A quadruple peripheral driver is designed for use in systems requiring high current, high voltage, and high load power. This device features four inverting open-collector outputs with a common-enable (G) input that, when taken low, disables all four outputs. The envelope of 1-V characteristics exceeds the specifications sufficiently to avoid high-current latch-up. Applications include driving relays, lamps, solenoids, motors, LEDs, transmission lines, hammers, and other high-power-demand devices.
