Texas Instruments
SN754410NE
SN754410NE
Regular price
$0.69 USD
Regular price
Sale price
$0.69 USD
Unit price
per
Couldn't load pickup availability

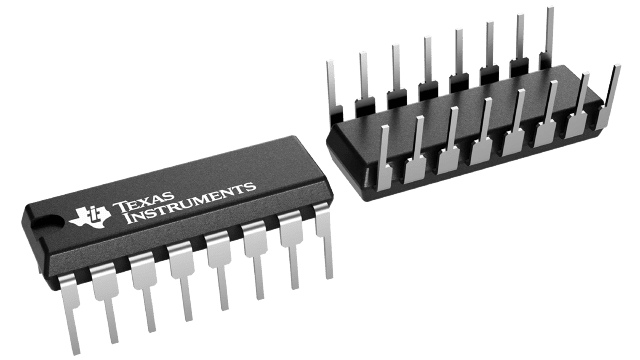

SN754410NE Texas Instruments - Yeehing Electronics
Quadruple Half-H Drivers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.211 |
| 100 — 249 | 1.826 |
| 250 — 999 | 1.312 |
| 1,000 + | 0.69 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Fan / Motor Controllers / Drivers |
| Type | Half Bridge |
| Operating Supply Voltage | 4.5 V to 36 V |
| Output Current | 1100 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | Through Hole |
| Package / Case | PDIP-16 |
| Packaging | Tube |
| Number of Outputs | 4 Output |
| Operating Temperature Range | - 40 C to + 85 C |
| Output Voltage | 36 V |
| Series | SN754410 |
| Brand | Texas Instruments |
| Pd - Power Dissipation | 2075 mW |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 25 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.033510 oz |
For more information, please refer to datasheet
Documents
| SN754410NE Datasheet |
More Information
The SN754410 is a quadruple high-current half-H driver designed to provide bidirectional drive currents up to 1 A at voltages from 4.5 V to 36 V. The device is designed to drive inductive loads such as relays, solenoids, DC and bipolar stepping motors, as well as other high-current/high-voltage loads in positive-supply applications.
