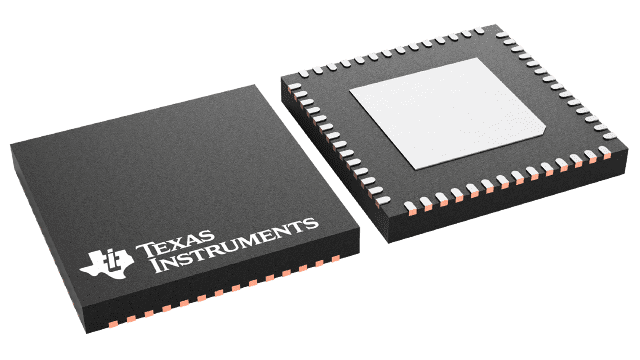

SN75DP122ARTQR Texas Instruments - Yeehing Electronics

DisplayPort 1-to-2 mux with Integrated TMDS Translator supports Display Port Spec 1.1a

Pricing (USD)

Quantity	Unit Price
1 — 99	3.547
100 — 249	3.108
250 — 999	2.179
1,000 +	1.23

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Display Interface IC
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	QFN-56
Series	SN75DP122A
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	Display Interface IC
Factory Pack Quantity	2000
Subcategory	Interface ICs
Unit Weight	0.006981 oz

For more information, please refer to datasheet

Documents

SN75DP122ARTQR Datasheet

More Information

The SN75DP122A is a one Dual-Mode DisplayPort input to one Dual-Mode DisplayPort output or one TMDS output. The TMDS output has a built in level translator compliant with Digital Video Interface (DVI) 1.0 and High Definition Multimedia Interface (HDMI) 1.3b. The DisplayPort output follows the input signal in a manner that provides the highest level of signal integrity while supporting the EMI benefits of spread spectrum clocking. Through the SN75DP122A data rates of up to 2.7 Gbps through each link for a total throughput of up to 10.8 Gbps can be realized. The SN75DP122A supports Display Port Spec 1.1a
