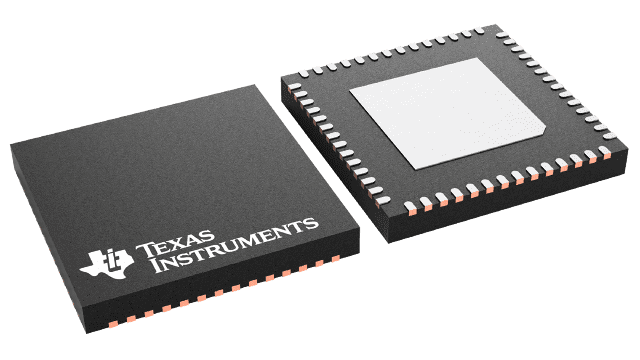

SN75DP122ARTQT Texas Instruments - Yeehing Electronics
DisplayPort 1-to-2 mux with Integrated TMDS Translator supports Display Port Spec 1.1a
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.846 |
100 — 249 | 3.135 |
250 — 999 | 2.464 |
1,000 + | 1.46 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Display Interface IC |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | QFN-56 |
Series | SN75DP122A |
Type | Display Port to TMDS Translator |
Operating Supply Voltage | 5 V |
Operating Supply Current | 60 mA |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Description/Function | One input port to one of two output ports |
Brand | Texas Instruments |
Interface Type | HDMI |
Moisture Sensitive | Yes |
Product Type | Display Interface IC |
Factory Pack Quantity | 250 |
Subcategory | Interface ICs |
Unit Weight | 0.006981 oz |
For more information, please refer to datasheet
Documents
SN75DP122ARTQT Datasheet |
More Information
The SN75DP122A is a one Dual-Mode DisplayPort input to one Dual-Mode DisplayPort output or one TMDS output. The TMDS output has a built in level translator compliant with Digital Video Interface (DVI) 1.0 and High Definition Multimedia Interface (HDMI) 1.3b. The DisplayPort output follows the input signal in a manner that provides the highest level of signal integrity while supporting the EMI benefits of spread spectrum clocking. Through the SN75DP122A data rates of up to 2.7 Gbps through each link for a total throughput of up to 10.8 Gbps can be realized. The SN75DP122A supports Display Port Spec 1.1a
