Texas Instruments

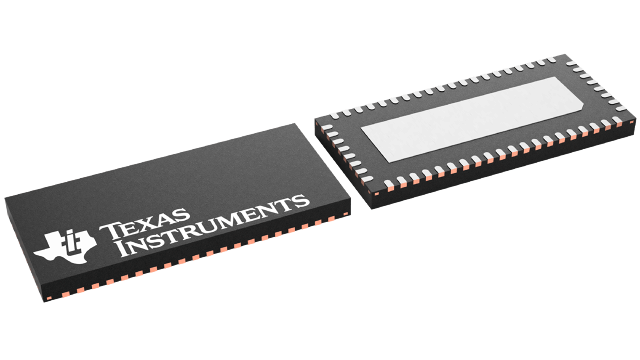

SN75DP126SSRHUR
SN75DP126SSRHUR
Regular price
$0.92 USD
Regular price
Sale price
$0.92 USD
Unit price
per
Couldn't load pickup availability
SN75DP126SSRHUR Texas Instruments - Yeehing Electronics
5.4-Gbps DP++ 1.1 to HDMI 1.4b / DP1.2 1-to-2 mux redriver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.429 |
| 100 — 249 | 1.98 |
| 250 — 999 | 1.556 |
| 1,000 + | 0.92 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Display Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-56 |
| Series | SN75DP126 |
| Type | Display Port Switch |
| Operating Supply Voltage | 3.3 V |
| Operating Supply Current | 138 mA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Display Interface IC |
| Factory Pack Quantity | 2000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.004586 oz |
For more information, please refer to datasheet
Documents
| SN75DP126SSRHUR Datasheet |
More Information
The SN75DP126 switches one Dual-Mode DisplayPort (DP++) input to one Dual-Mode DisplayPort (DP++) sink output or one HDMI/DVI sink output. The HDMI/DVI output has a built-in level translator compliant with DVI 1.0 and HDMI 1.4b standard TMDS signaling, and is specified up to a maximum data rate of 3.4 Gbps, supporting resolutions greater than 1920 X 1440 and HDTV deep color at 1080p. An integrated DP-HDMI Adaptor ID buffer can be accessed when the HDMI/DVI sink is selected to indicate support for HDMI signaling.
