Texas Instruments

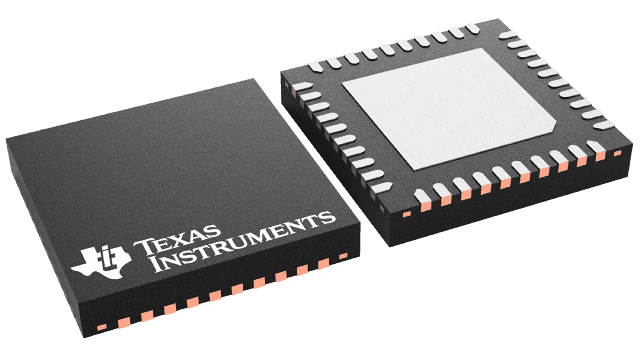

SN75DP139RSBR
SN75DP139RSBR
Couldn't load pickup availability
SN75DP139RSBR Texas Instruments - Yeehing Electronics
3.4-Gbps DP++ to HDMI 1.4b retimer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.07 |
| 100 — 249 | 1.709 |
| 250 — 999 | 1.228 |
| 1,000 + | 0.65 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Display Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-40 |
| Series | SN75DP139 |
| Type | Display Port to TMDS Translator |
| Operating Supply Voltage | 3.3 V |
| Operating Supply Current | 110 mA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Display Interface IC |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Unit Weight | 0.001929 oz |
For more information, please refer to datasheet
Documents
| SN75DP139RSBR Datasheet |
More Information
The SN75DP139 is a dual-mode DisplayPort input to Transition-Minimized Differential Signaling (TMDS) output. The TMDS output has a built-in level-shifting re-driver supporting Digital Video Interface (DVI) 1.0 and High Definition Multimedia Interface (HDMI) 1.4b standards. The SN75DP139 is specified up to a maximum data rate of 3.4 Gbps, supporting resolutions greater then 1920 × 1200 or HDTV 12-bit color depth at 1080p (progressive scan). The SN75DP139 is compliant with the HDMI 1.4b specifications and supports optional protocol enhancements such as 3D graphics at resolutions demanding a pixel rate up to 340 MHz.
