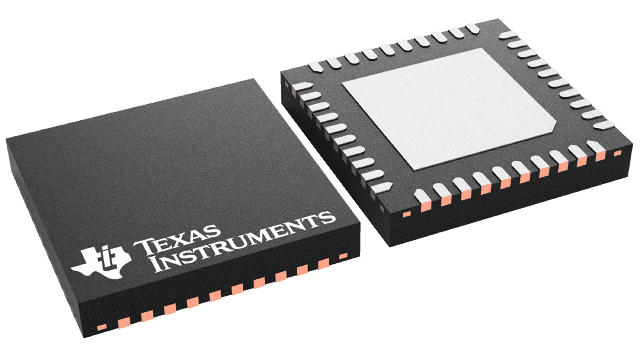

SN75DP159RSBT Texas Instruments - Yeehing Electronics
6-Gbps DP++ 1.1 to HDMI 2.0 retimer -40 to 85C operating temperature
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 5.483 |
100 — 249 | 4.47 |
250 — 999 | 3.513 |
1,000 + | 1.71 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Interface - Signal Buffers, Repeaters |
RoHS | Y |
Product | Retimers |
Propagation Delay Time | 360 ns |
Maximum Clock Frequency | 400 kHz |
Operating Supply Voltage | 1.1 V, 3.3 V |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | WQFN-40 |
Packaging | Reel |
Data Rate | 6 Gb/s |
Series | SN75DP159 |
Type | DisplayPort to HDMI Retimer |
Brand | Texas Instruments |
Interface Type | 2-Wire, I2C |
Number of Channels | 2 Channel |
Ciss - Input Capacitance | 10 pF |
Moisture Sensitive | Yes |
Pd - Power Dissipation | 435 mW |
Product Type | Signal Buffers, Repeaters |
Factory Pack Quantity | 250 |
Subcategory | Interface ICs |
Supply Voltage - Max | 3.6 V |
Supply Voltage - Min | 1 V |
Tradename | DisplayPort |
Unit Weight | 0.002649 oz |
For more information, please refer to datasheet
Documents
SN75DP159RSBT Datasheet |
More Information
The SNx5DP159 device is a dual mode[1] DisplayPort to transition-minimized differential signal (TMDS) retimer supporting digital video interface (DVI) 1.0 and high-definition multimedia interface (HDMI) 1.4b and 2.0b output signals. The SNx5DP159 device supports the dual mode standard version 1.1 type 1 and type 2 through the DDC link or AUX channel. The SNx5DP159 device supports data rate up to 6-Gbps per data lane to support Ultra HD (4K × 2K / 60-Hz) 8-bits per color high-resolution video and HDTV with 16-bit color depth at 1080p (1920 × 1080 / 60-Hz). The SNx5DP159 device can automatically configure itself as a re-driver at data rates <1 Gbps, or as a retimer at more than this data rate. This feature can be turned off through I2C[4] programming.
