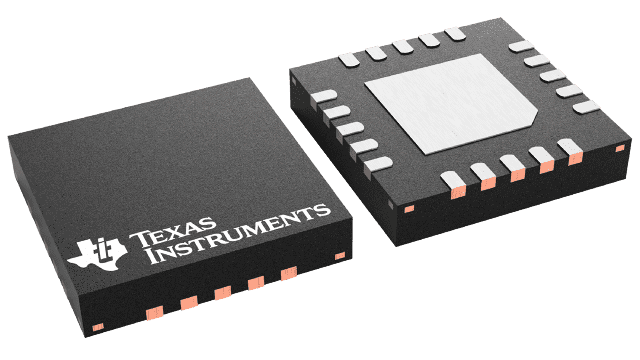

SN75LVCP412ARTJT Texas Instruments - Yeehing Electronics
2-channel SATA 3-Gbps redriver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.284 |
| 100 — 249 | 3.754 |
| 250 — 999 | 2.632 |
| 1,000 + | 1.48 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - Signal Buffers, Repeaters |
| RoHS | Y |
| Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-20 |
| Packaging | Reel |
| Application | SATA Gen 2.6, eSATA |
| Series | SN75LVCP412A |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 78 mA |
| Pd - Power Dissipation | 1052 mW |
| Product Type | Signal Buffers, Repeaters |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.001344 oz |
For more information, please refer to datasheet
Documents
| SN75LVCP412ARTJT Datasheet |
More Information
The SN75LVCP412A is a dual channel, single lane SATA redriver and signal conditioner supporting data rates up to 3.0 Gbps that complies with SATA specification revision 2.6.
