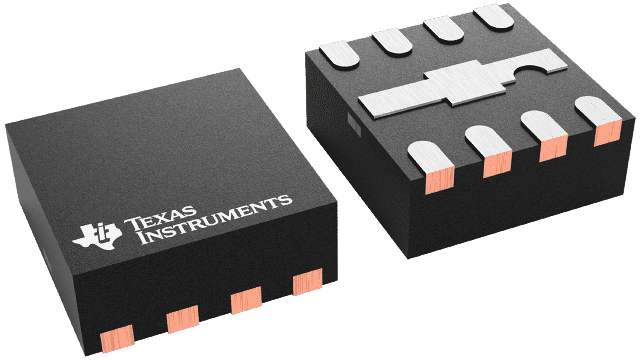

SN75LVCP600DRFR Texas Instruments - Yeehing Electronics
1.5/3.0/6.0-Gbps single channel SATA redriver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.778 |
| 100 — 249 | 1.558 |
| 250 — 999 | 1.092 |
| 1,000 + | 0.62 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - Specialized |
| RoHS | Y |
| Type | PCB and Cable Equalizer |
| Operating Supply Voltage | 3.3 V |
| Operating Supply Current | 40 mA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-8 |
| Packaging | Reel |
| Series | SN75LVCP600 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Interface - Specialized |
| Protocol Supported | SAS/SATA |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| SN75LVCP600DRFR Datasheet |
More Information
The SN75LVCP600 is a versatile single channel, SATA Express signal conditioner supporting data rates up to 6 Gbps. The device supports SATA Gen 1, 2, and 3 specifications as well as PCIe 1.0, 2.0, and 3.0. The SN75LVCP600 operates from a single 3.3-V supply and has 100-Ω line termination with self-biasing feature, making the device suitable for AC coupling. The inputs incorporate an out-of-band (OOB) detector, which automatically squelches the output when the input differential voltage falls below threshold while maintaining a stable common-mode voltage. The device is also designed to handle spread spectrum clocking (SSC) transmission per SATA standard.
