Texas Instruments

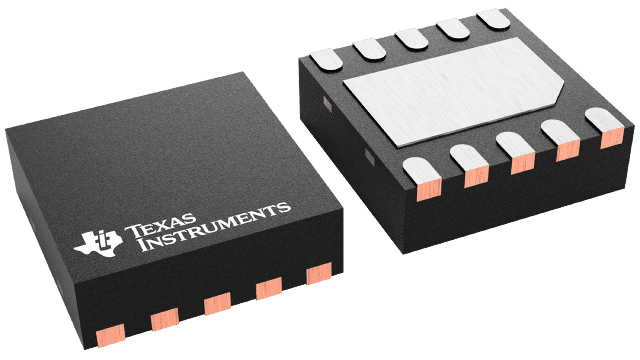

SN75LVCP600SDSKR
SN75LVCP600SDSKR
Regular price
$0.57 USD
Regular price
Sale price
$0.57 USD
Unit price
per
Couldn't load pickup availability
SN75LVCP600SDSKR Texas Instruments - Yeehing Electronics
1.5/3.0/6.0-Gbps single channel SATA/SAS redriver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.955 |
| 100 — 249 | 1.713 |
| 250 — 999 | 1.201 |
| 1,000 + | 0.57 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - Signal Buffers, Repeaters |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-10 |
| Packaging | Reel |
| Application | SATA / SAS |
| Series | SN75LVCP600S |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 45 mA |
| Product Type | Signal Buffers, Repeaters |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.000536 oz |
For more information, please refer to datasheet
Documents
| SN75LVCP600SDSKR Datasheet |
More Information
The SN75LVCP600S is a single-channel SATA/SAS signal conditioner supporting data rates up to 6 Gbps. The device complies with SATA physical spec rev 3.0 and SAS electrical spec 2.0. The SN75LVCP600S operates from a single 3.3-V supply and has 100-Ω line termination with a self-biasing feature, making the device suitable for AC coupling. The inputs incorporate an out-of-band (OOB) detector, which automatically squelches the output while maintaining a stable common-mode voltage compliant to the SATA/SAS link.
