SN75LVCP601RTJR Texas Instruments - Yeehing Electronics

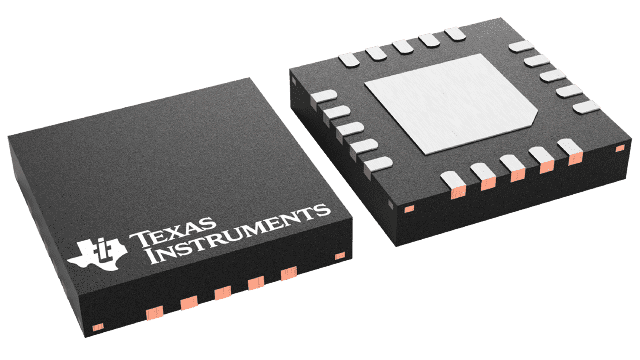

2-channel SATA 6-Gbps redriver

Pricing (USD)

Quantity	Unit Price
1 — 99	2.222
100 — 249	1.947
250 — 999	1.365
1,000 +	0.77

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Interface - Signal Buffers, Repeaters
RoHS	Y
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	QFN-20
Packaging	Reel
Application	SATA / SAS
Series	SN75LVCP601
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	80 mA
Product Type	Signal Buffers, Repeaters
Factory Pack Quantity	3000
Subcategory	Interface ICs
Unit Weight	0.001344 oz

For more information, please refer to datasheet

Documents

SN75LVCP601RTJR Datasheet

More Information

The SN75LVCP601 device is a dual-channel, single-lane SATA redriver and signal conditioner supporting data rates up to 6 Gbps. The device complies with SATA physical link 2m and 3i specifications. The SN75LVCP601 operates from one 3.3-V supply and has 100-Ω line termination with a self-biasing feature, making the device suitable for ac coupling. The inputs incorporate an out-of-band (OOB) detector, which automatically squelches the output while maintaining a stable common-mode voltage compliant to the SATA link. The device design also handles spread-spectrum clocking (SSC) transmission per the SATA specification.
