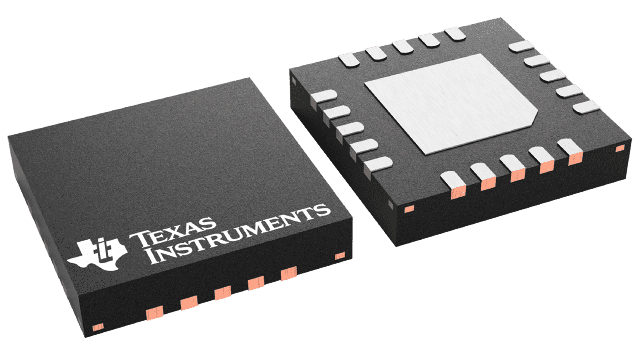

SN75LVCP601RTJT Texas Instruments - Yeehing Electronics
2-channel SATA 6-Gbps redriver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.666 |
| 100 — 249 | 2.336 |
| 250 — 999 | 1.638 |
| 1,000 + | 0.92 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - Signal Buffers, Repeaters |
| RoHS | Y |
| Operating Supply Voltage | 3 V to 3.6 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-20 |
| Packaging | Reel |
| Application | SATA / SAS |
| Series | SN75LVCP601 |
| Type | Single-Lane SATA Redriver |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 80 mA |
| Pd - Power Dissipation | 215 mW |
| Product Type | Signal Buffers, Repeaters |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Supply Voltage - Max | 3.6 V |
| Unit Weight | 0.001344 oz |
For more information, please refer to datasheet
Documents
| SN75LVCP601RTJT Datasheet |
More Information
The SN75LVCP601 device is a dual-channel, single-lane SATA redriver and signal conditioner supporting data rates up to 6 Gbps. The device complies with SATA physical link 2m and 3i specifications. The SN75LVCP601 operates from one 3.3-V supply and has 100-Ω line termination with a self-biasing feature, making the device suitable for ac coupling. The inputs incorporate an out-of-band (OOB) detector, which automatically squelches the output while maintaining a stable common-mode voltage compliant to the SATA link. The device design also handles spread-spectrum clocking (SSC) transmission per the SATA specification.
