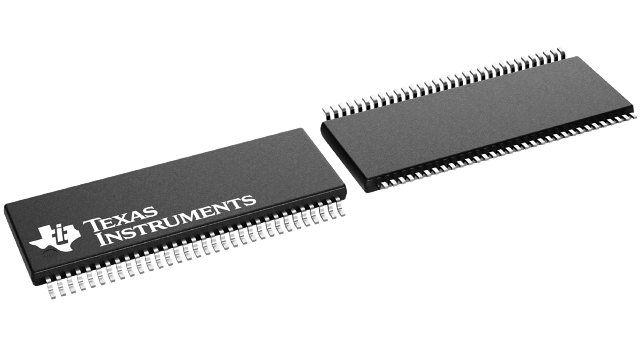

SN75LVDS387DGG Texas Instruments - Yeehing Electronics

16-channel LVDS driver

Pricing (USD)

Quantity	Unit Price
1 — 99	9.068
100 — 249	7.392
250 — 999	5.81
1,000 +	3.45

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LVDS Interface IC
RoHS	Y
Type	Driver
Number of Drivers	16 Driver
Data Rate	630 Mb/s
Input Type	LVTTL
Output Type	LVDS
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	TSSOP-64
Packaging	Tube
Series	SN75LVDS387
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	95 mA
Operating Supply Voltage	3.3 V
Pd - Power Dissipation	2094 mW
Product Type	LVDS Interface IC
Propagation Delay Time	1.7 ns
Factory Pack Quantity	25
Subcategory	Interface ICs
Unit Weight	0.009263 oz

For more information, please refer to datasheet

Documents

SN75LVDS387DGG Datasheet

More Information

This family of 4, 8, and 16 differential line drivers implements the electrical characteristics of low-voltage differential signaling (LVDS). This signaling technique lowers the output voltage levels of 5-V differential standard levels (such as EIA/TIA-422B) to reduce the power, increase the switching speeds, and allow operation with a 3.3-V supply rail. Any of the 16 current-mode drivers will deliver a minimum differential output voltage magnitude of 247 mV into a 100-Ω load when enabled.
