Description

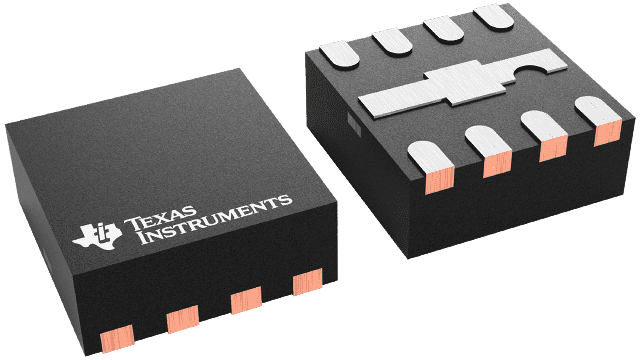

SN75LVPE801DRFR Texas Instruments - Yeehing Electronics
8.0-Gbps SATA Express redriver
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.311 |
100 — 249 | 2.025 |
250 — 999 | 1.42 |
1,000 + | 0.69 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Equalizers |
RoHS | Y |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 85 C |
Series | SN75LVPE801 |
Packaging | Reel |
Operating Temperature Range | 0 C to + 85 C |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Product Type | Equalizers |
Factory Pack Quantity | 3000 |
Subcategory | Equalizers |
For more information, please refer to datasheet
Documents
SN75LVPE801DRFR Datasheet |
More Information
The SN75LVPE801 is a versatile single channel, SATA Express signal conditioner supporting data rates up to 8 Gbps. The device supports SATA Gen 1, 2, and 3 specifications as well as PCIe 1.0, 2.0, and 3.0. The SN75LVPE801 operates from a single 3.3-V supply and has 100-Ω line termination with self-biasing feature, making the device suitable for AC coupling. The inputs incorporate an out-of-band (OOB) detector, which automatically squelches the output when the input differential voltage falls below threshold while maintaining a stable common-mode voltage. The device is also designed to handle spread spectrum clocking (SSC) transmission per SATA standard.
