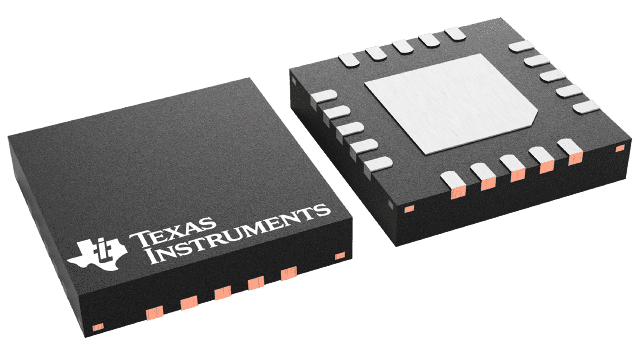

SN75LVPE802RTJR Texas Instruments - Yeehing Electronics
2-channel 8.0-Gbps SATA Express redriver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.489 |
| 100 — 249 | 2.181 |
| 250 — 999 | 1.529 |
| 1,000 + | 0.72 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Equalizers |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-20 |
| Product | Equalizers |
| Data Rate | 8 Gb/s |
| Operating Supply Voltage | 3.3 V |
| Operating Supply Current | 80 mA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Series | SN75LVPE802 |
| Packaging | Reel |
| Input Voltage | 3 V to 3.6 V |
| Operating Temperature Range | 0 C to + 85 C |
| Type | SATA Express Equalizer and Redriver |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Number of Drivers | 2 Driver |
| Number of Receivers | 2 Receiver |
| Pd - Power Dissipation | 188 mW |
| Product Type | Equalizers |
| Factory Pack Quantity | 3000 |
| Subcategory | Equalizers |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| SN75LVPE802RTJR Datasheet |
More Information
The SN75LVPE802 is a versatile dual channel, SATA Express signal conditioner supporting data rates up to 8 Gbps. The device supports SATA Gen 1, 2, and 3 specifications as well as PCIe 1, 2, 3. The SN75LVPE802 operates from a single 3.3-V supply and has 100-Ω line termination with self-biasing feature, making the device suitable for AC coupling. The inputs incorporate an out-of-band (OOB) detector, which automatically squelches the output when the input differential voltage falls below threshold while maintaining a stable common-mode voltage. The device is also designed to handle spread spectrum clocking (SSC) transmission per SATA standard.
