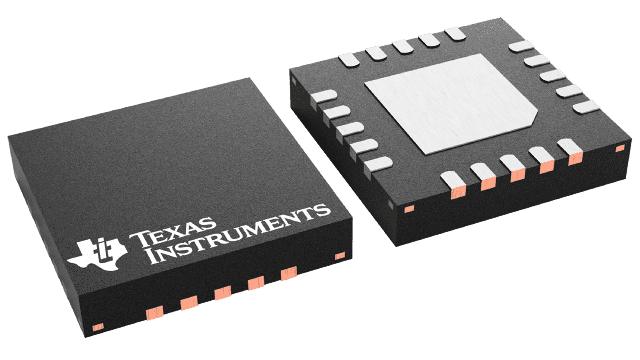

SN75LVPE802RTJT Texas Instruments - Yeehing Electronics

2-channel 8.0-Gbps SATA Express redriver

Pricing (USD)

Quantity	Unit Price
1 — 99	2.986
100 — 249	2.616
250 — 999	1.834
1,000 +	1.03

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Equalizers
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	QFN-20
Product	Equalizers
Data Rate	8 Gb/s
Operating Supply Voltage	3.3 V
Operating Supply Current	80 mA
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 85 C
Series	SN75LVPE802
Packaging	Reel
Input Voltage	3 V to 3.6 V
Operating Temperature Range	0 C to + 85 C
Type	SATA Express Equalizer and Redriver
Brand	Texas Instruments
Moisture Sensitive	Yes
Number of Drivers	2 Driver
Number of Receivers	2 Receiver
Pd - Power Dissipation	188 mW
Product Type	Equalizers
Factory Pack Quantity	250
Subcategory	Equalizers
Supply Voltage - Max	3.6 V
Supply Voltage - Min	3 V
Unit Weight	0.001411 oz

For more information, please refer to datasheet

Documents

SN75LVPE802RTJT Datasheet

More Information

The SN75LVPE802 is a versatile dual channel, SATA Express signal conditioner supporting data rates up to 8 Gbps. The device supports SATA Gen 1, 2, and 3 specifications as well as PCIe 1, 2, 3. The SN75LVPE802 operates from a single 3.3-V supply and has 100-Ω line termination with self-biasing feature, making the device suitable for AC coupling. The inputs incorporate an out-of-band (OOB) detector, which automatically squelches the output when the input differential voltage falls below threshold while maintaining a stable common-mode voltage. The device is also designed to handle spread spectrum clocking (SSC) transmission per SATA standard.
