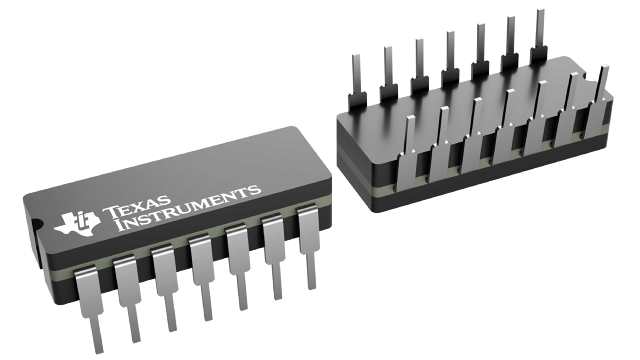

SNJ5401J Texas Instruments - Yeehing Electronics

Military 4-ch, 2-input, 4.5-V to 5.5-V bipolar NAND gates with open-collector outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	11.831
100 — 249	10.334
250 — 999	7.968
1,000 +	4.99

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-55
Maximum Operating Temperature	125
Factory Pack Quantity	1
Package | Pins	CDIP (J) | 14

For more information, please refer to datasheet

Documents

SNJ5401J Datasheet

More Information

These devices contain four independent 2-input NAND gates. The open-collector outputs require pull-up resistors to perform correctly. They may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate higher VOH levels.
