SNJ5407FK Texas Instruments - Yeehing Electronics

Military 6-ch, 4.5-V to 5.5-V bipolar buffers with open-collector outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	24.408
100 — 249	21.696
250 — 999	17.835
1,000 +	12.76

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-55
Maximum Operating Temperature	125
Factory Pack Quantity	1

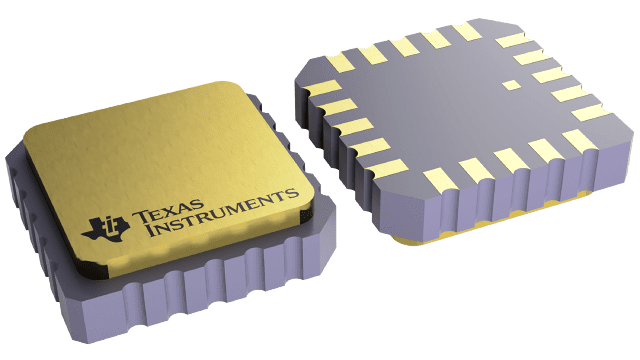

Package | Pins	LCCC (FK) | 20

For more information, please refer to datasheet

Documents

SNJ5407FK Datasheet

More Information

These TTL hex buffers and drivers feature high-voltage open-collector outputs for interfacing with high-level circuits (such as MOS) or for driving high-current loads (such as lamps or relays), and also are characterized for use as buffers for driving TTL inputs. The SN5407 and SN7407 devices have minimum breakdown voltages of 30 V, and the SN5417 and SN7417 devices have minimum breakdown voltages of 15 V. The maximum sink current is 30 mA for the SN5407 and SN5417 devices and 40 mA for the SN7407 and SN7417 devices.
