Texas Instruments
SNJ54ABT16543WD
SNJ54ABT16543WD
Regular price
$36.40 USD
Regular price
Sale price
$36.40 USD
Unit price
per
Couldn't load pickup availability

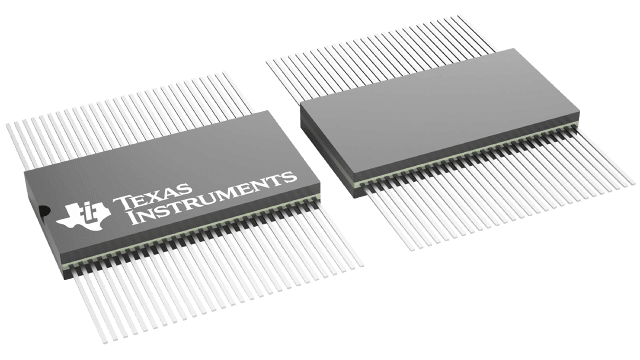

SNJ54ABT16543WD Texas Instruments - Yeehing Electronics
16-Bit Registered Transceivers With 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 69.16 |
| 100 — 249 | 67.08 |
| 250 — 999 | 55.848 |
| 1,000 + | 36.40 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SNJ54ABT16543WD Datasheet |
More Information
The 'ABT16543 16-bit registered transceivers contain two sets of D-type latches for temporary storage of data flowing in either direction. The 'ABT16543 can be used as two 8-bit transceivers or one 16-bit transceiver. Separate latch-enable ( or) and output-enable ( or ) inputs are provided for each register to permit independent control in either direction of data flow.
