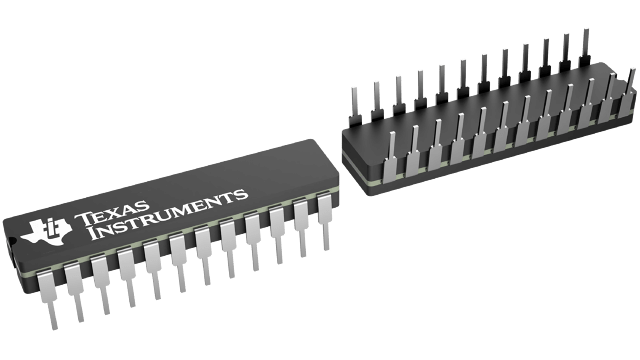

SNJ54ABT2952AJT Texas Instruments - Yeehing Electronics
Octal Bus Transceivers And Registers With 3-State Outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 47.219 |
100 — 249 | 41.972 |
250 — 999 | 34.504 |
1,000 + | 21.60 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
SNJ54ABT2952AJT Datasheet |
More Information
The 'ABT2952A transceivers consist of two 8-bit back-to-back registers that store data flowing in both directions between two bidirectional buses. Data on the A or B bus is stored in the registers on the low-to-high transition of the clock (CLKAB or CLKBA) input provided that the clock-enable (CLKENAB or CLKENBA) input is low. Taking the output-enable (OEAB or OEBA) input low accesses the data on either port.
