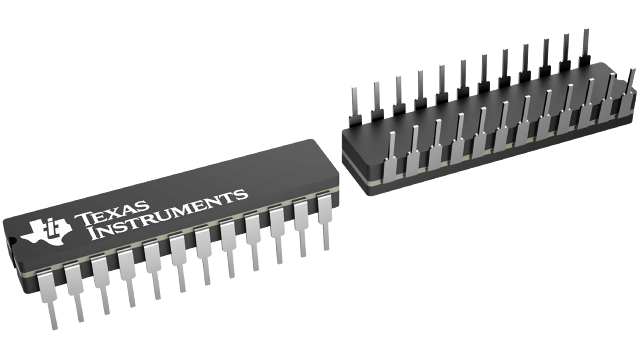

SNJ54ABT646AJT Texas Instruments - Yeehing Electronics
Octal Bus Transceivers And Registers With 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 26.523 |
| 100 — 249 | 23.576 |
| 250 — 999 | 19.381 |
| 1,000 + | 12.13 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SNJ54ABT646AJT Datasheet |
More Information
These devices consist of bus-transceiver circuits, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the input bus or from the internal registers. Data on the A or B bus is clocked into the registers on the low-to-high transition of the appropriate clock (CLKAB or CLKBA) input. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the ABT646A devices.
