Texas Instruments
SNJ54ABTH32316HT
SNJ54ABTH32316HT
Regular price
$216.79 USD
Regular price
Sale price
$216.79 USD
Unit price
per
Couldn't load pickup availability

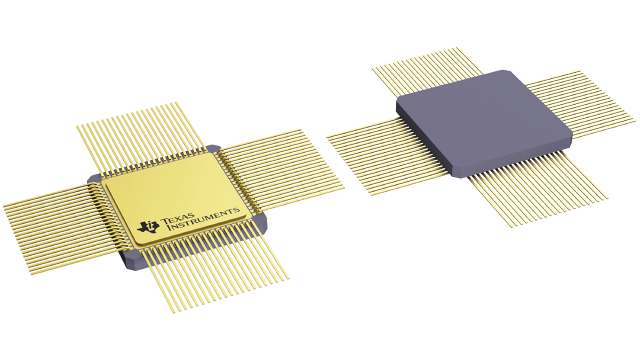

SNJ54ABTH32316HT Texas Instruments - Yeehing Electronics
16-bit tri-port universal bus exchangers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 309.694 |
| 100 — 249 | 283.886 |
| 250 — 999 | 258.078 |
| 1,000 + | 216.79 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -55 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 250 |
| Package | Pins | CFP (HT) | 84 |
For more information, please refer to datasheet
Documents
| SNJ54ABTH32316HT Datasheet |
More Information
The 'ABTH32316 consist of three 16-bit registered input/output (I/O) ports. These registers combine D-type latches and flip-flops to allow data flow in transparent, latch, and clock modes. Data from one input port can be exchanged to one or more of the other ports. Because of the universal storage element, multiple combinations of real-time and stored data can be exchanged among the three ports.
