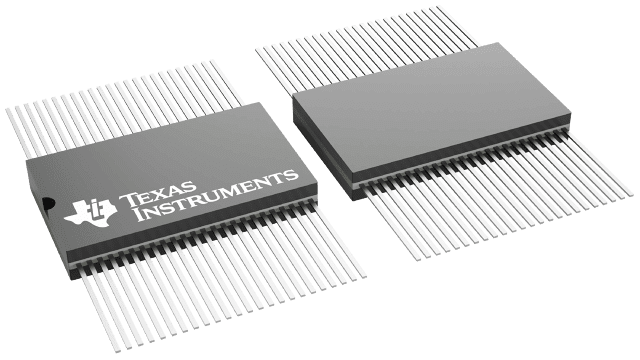

SNJ54ACT16373WD Texas Instruments - Yeehing Electronics

16-BIT D-TYPE TRANSPARENT LATCHES WITH 3-STATE OUTPUTS

Pricing (USD)

Quantity	Unit Price
1 — 99	83.404
100 — 249	80.896
250 — 999	67.351
1,000 +	43.90

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SNJ54ACT16373WD Datasheet

More Information

The SN54ACT16373 and 74ACT16373 are 16-bit D-type transparent latches with 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. These devices can be used as two 8-bit latches or one 16-bit latch. The Q outputs of the latches follow the data (D) inputs if enable C is taken high. When C is taken low, the Q outputs are latched at the levels set up at the D inputs.
