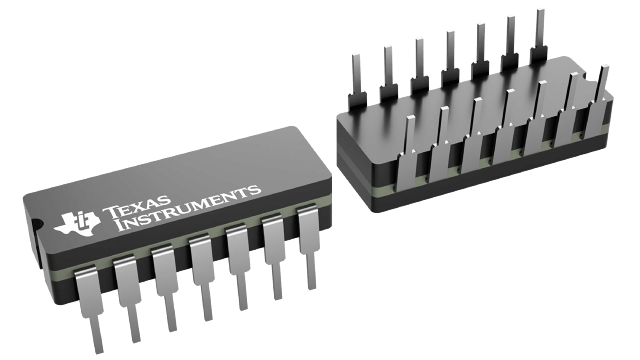

SNJ54ALS09J Texas Instruments - Yeehing Electronics
Military 4-ch, 2-input, 4.5-V to 5.5-V bipolar AND gates with open-collector outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.43 |
| 100 — 249 | 10.858 |
| 250 — 999 | 8.372 |
| 1,000 + | 5.24 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SNJ54ALS09J Datasheet |
More Information
These devices contain four independent 2-input positive-AND gates. They perform the Boolean functions Y = A x95 B or in positive logic. The open-collector outputs require pullup resistors to perform correctly. These outputs may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate higher VOH levels.
