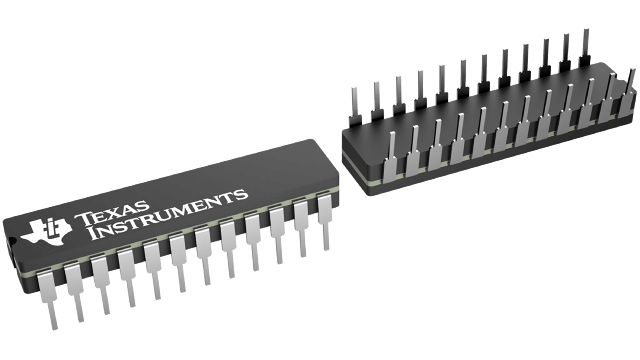

SNJ54ALS648JT Texas Instruments - Yeehing Electronics
Military 8-ch, 4.5-V to 5.5-V bipolar inverters with 3-state outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 47.083 |
100 — 249 | 41.851 |
250 — 999 | 34.404 |
1,000 + | 21.54 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
SNJ54ALS648JT Datasheet |
More Information
These devices consist of bus-transceiver circuits with 3-state or open-collector outputs, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the data bus or from the internal storage registers. Data on the A or B bus is clocked into the registers on the low-to-high transition of the appropriate clock (CLKAB or CLKBA) input. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the octal bus transceivers and registers.
