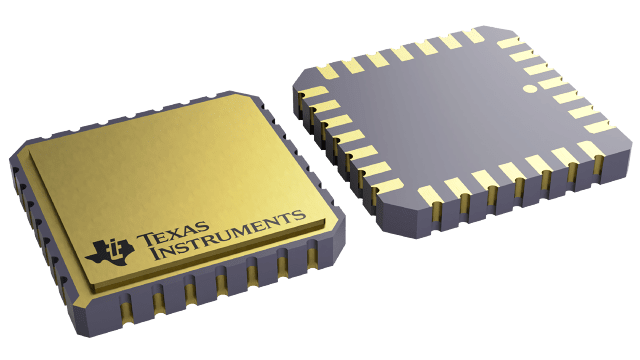

SNJ54ALS653FK Texas Instruments - Yeehing Electronics
Octal Bus Transceivers And Registers With 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 60.866 |
| 100 — 249 | 54.104 |
| 250 — 999 | 44.476 |
| 1,000 + | 27.85 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SNJ54ALS653FK Datasheet |
More Information
These devices consist of bus-transceiver circuits, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the data bus or from the internal storage registers. Output-enable (OEAB and OEBA) inputs are provided to control the transceiver functions. Select-control (SAB and SBA) inputs are provided to select real-time or stored data transfer. The circuitry used for select control eliminates the typical decoding glitch that occurs in a multiplexer during the transition between stored and real-time data. A low input level selects real-time data, and a high input level selects stored data. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the octal bus transceivers and registers
