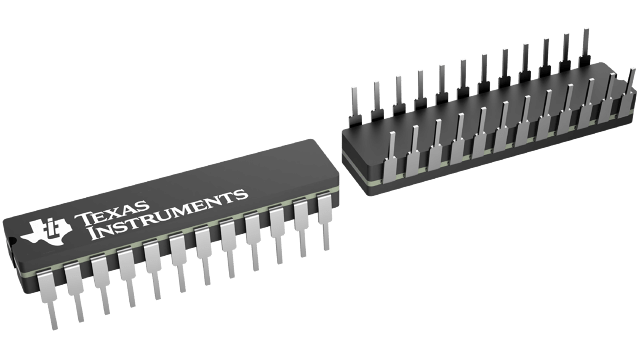

SNJ54AS646JT Texas Instruments - Yeehing Electronics

Octal Bus Transceivers & Registers With 3 -State Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	39.079
100 — 249	34.737
250 — 999	28.556
1,000 +	17.88

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SNJ54AS646JT Datasheet

More Information

These devices consist of bus-transceiver circuits with 3-state or open-collector outputs, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the data bus or from the internal storage registers. Data on the A or B bus is clocked into the registers on the low-to-high transition of the appropriate clock (CLKAB or CLKBA) input. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the octal bus transceivers and registers.
