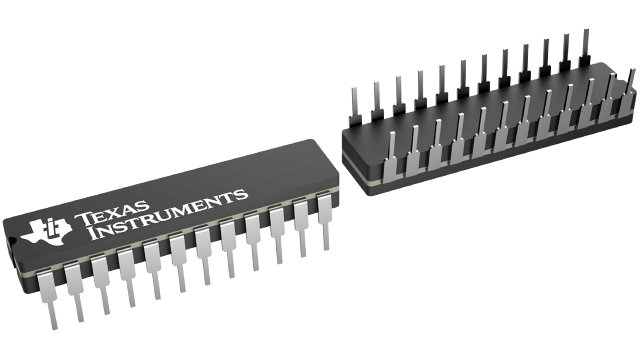

SNJ54AS652JT Texas Instruments - Yeehing Electronics

Octal Bus Transceivers And Registers With 3-State Outputs

Pricing (USD)

Quantity	Unit Price
1 — 99	46.847
100 — 249	41.642
250 — 999	34.232
1,000 +	21.43

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

SNJ54AS652JT Datasheet

More Information

These devices consist of bus-transceiver circuits, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the data bus or from the internal storage registers. Output-enable (OEAB and OEBA) inputs are provided to control the transceiver functions. Select-control (SAB and SBA) inputs are provided to select real-time or stored data transfer. The circuitry used for select control eliminates the typical decoding glitch that occurs in a multiplexer during the transition between stored and real-time data. A low input level selects real-time data, and a high input level selects stored data. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the octal bus transceivers and registers
