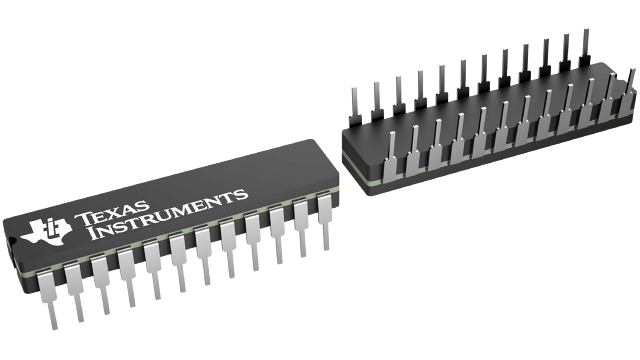

SNJ54AS869JT Texas Instruments - Yeehing Electronics
Synchronous 8-Bit Up/Down Counters
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 50.973 |
100 — 249 | 45.31 |
250 — 999 | 37.247 |
1,000 + | 23.32 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
SNJ54AS869JT Datasheet |
More Information
These synchronous, presettable, 8-bit up/down counters feature internal-carry look-ahead circuitry for cascading in high-speed counting applications. Synchronous operation is provided by having all flip-flops clocked simultaneously so that the outputs change coincidentally with each other when so instructed by the count-enable (,) inputs and internal gating. This mode of operation eliminates the output counting spikes normally associated with asynchronous (ripple-clock) counters. A buffered clock (CLK) input triggers the eight flip-flops on the rising (positive-going) edge of the clock waveform.
