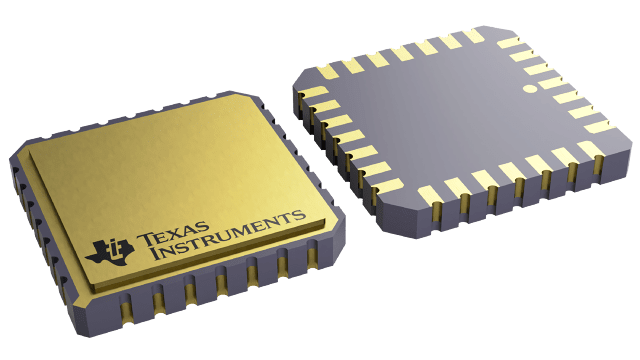

SNJ54BCT646FK Texas Instruments - Yeehing Electronics
Octal Bus Transceivers And Registers With 3-State Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 47.214 |
| 100 — 249 | 41.968 |
| 250 — 999 | 34.5 |
| 1,000 + | 21.60 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SNJ54BCT646FK Datasheet |
More Information
These devices consist of bus transceiver circuits, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the input bus or from the internal registers. Data on the A or B bus is clocked into the registers on the low-to-high transition of the appropriate clock (CLKAB or CLKBA) input. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the BCT646 devices.
