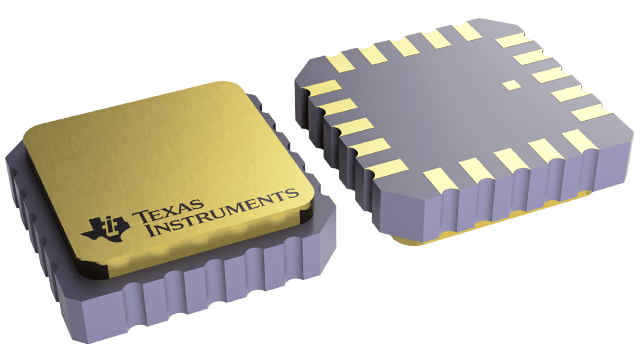

SNJ54HC164FK Texas Instruments - Yeehing Electronics
8-Bit Parallel-Out Serial Shift Registers
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 38.935 |
| 100 — 249 | 34.609 |
| 250 — 999 | 28.451 |
| 1,000 + | 20.36 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SNJ54HC164FK Datasheet |
More Information
These 8-bit shift registers feature AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial (A and B) inputs permit complete control over incoming data; a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock (CLK) pulse. A high-level input enables the other input, which then determines the state of the first flip-flop. Data at the serial inputs can be changed while CLK is high or low, provided the minimum set-up time requirements are met. Clocking occurs on the low-to-high-level transition of CLK.
