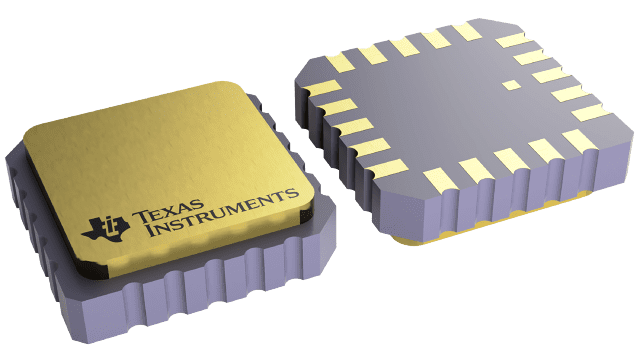

SNJ54HC244FK Texas Instruments - Yeehing Electronics
Military 8-ch, 2-V to 6-V buffers with 3-state outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | None |
| 100 — 249 | None |
| 250 — 999 | None |
| 1,000 + | None |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SNJ54HC244FK Datasheet |
More Information
The SNx4HC244 octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The SNx4HC244 devices are organized as two 4-bit buffers and drivers with separate output-enable (OE) inputs. When OE is low, the device passes noninverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.
