Description

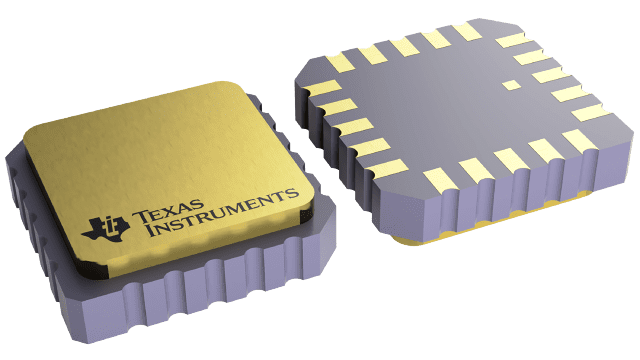

SNJ54LS373FK Texas Instruments - Yeehing Electronics
Octal D-Type Transparent Latches with 3-state Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 33.908 |
| 100 — 249 | 30.14 |
| 250 — 999 | 24.777 |
| 1,000 + | 17.73 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| SNJ54LS373FK Datasheet |
More Information
These 8-bit registers feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The high-impedance 3-state and increased high-logic-level drive provide these registers with the capability of being connected directly to and driving the bus lines in a bus-organized system without need for interface or pullup components. These devices are particularly attractive for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
