Description

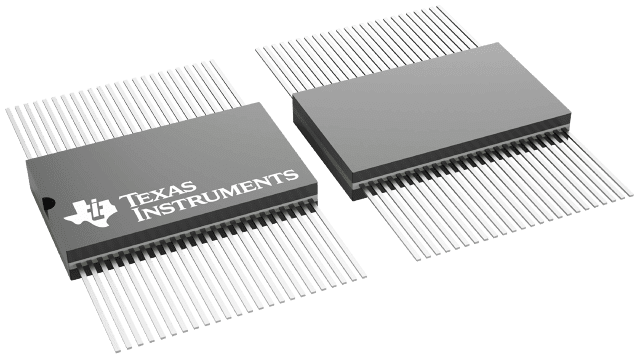

SNJ54LVTH162244WD Texas Instruments - Yeehing Electronics
Military 16-ch, 2.7-V to 3.6-V buffers with bus-hold, TTL-compatible CMOS inputs and 3-state outputs
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 67.488 |
100 — 249 | 59.99 |
250 — 999 | 49.315 |
1,000 + | 30.88 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
SNJ54LVTH162244WD Datasheet |
More Information
The 'LVTH162244 devices are 16-bit buffers and line drivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. These devices provide true outputs and symmetrical active-low output-enable (OE) inputs.
